Conventional sludge can be divided into municipal sludge and domestic sludge: municipal sludge has low organic matter and more sand;Domestic sludge has high organic matter and less sand. Among them,domestic sludge can often be treated by biological composting, which has low production cost and is widely used. The treatment of municipal sludge has always been one of the difficulties and priorities in our country.According to the current domestic form, our company has developed a municipal sludge thermal desorption repair equipment Municipal Sludge mainly refers to the sludge from sewage plants, which is the largest amount of sludge. In addition, the sludge of waterworks also comes from municipal facilities, which can be classifed into this category.The municipal sludge is transported to the thermal desorption and repair equipment in a centralized manner, and it is first sterilized and dehydrated; Then, the harmful solid waste is subject to anaerobic cracking and harmless treatment. Finally, the municipal sludge will be reduced,harmless and resourceful.
| Equipment parameters | |
| Mode | ZQ20-TD10-SZWN |
| Main furnace size | ∮2600*8800 |
| Applicable raw materials | urban sludge and sludge |
| Processing capacity | 25 tons /furnace |
| End products | hydrocarbon fuel, carbon black, combustible gas,non-toxic soil after restoration |
| Working pressure | normal pressure |
| Working temperature | -20~400°C |
| Floor area | 32m*12m |
| Total power | 80KW |
Conventional sludge can be divided into municipal sludge and domestic sludge: municipal sludge has low organic matter and more sand;Domestic sludge has high organic matter and less sand. Among them,domestic sludge can often be treated by biological composting, which has low production cost and is widely used. The treatment of municipal sludge has always been one of the difficulties and priorities in our country.According to the current domestic form, our company has developed a municipal sludge thermal desorption repair equipment Municipal Sludge mainly refers to the sludge from sewage plants, which is the largest amount of sludge. In addition, the sludge of waterworks also comes from municipal facilities, which can be classifed into this category.The municipal sludge is transported to the thermal desorption and repair equipment in a centralized manner, and it is first sterilized and dehydrated; Then, the harmful solid waste is subject to anaerobic cracking and harmless treatment. Finally, the municipal sludge will be reduced,harmless and resourceful.
| Equipment parameters | |
| Mode | ZQ20-TD10-SZWN |
| Main furnace size | ∮2600*8800 |
| Applicable raw materials | urban sludge and sludge |
| Processing capacity | 25 tons /furnace |
| End products | hydrocarbon fuel, carbon black, combustible gas,non-toxic soil after restoration |
| Working pressure | normal pressure |
| Working temperature | -20~400°C |
| Floor area | 32m*12m |
| Total power | 80KW |

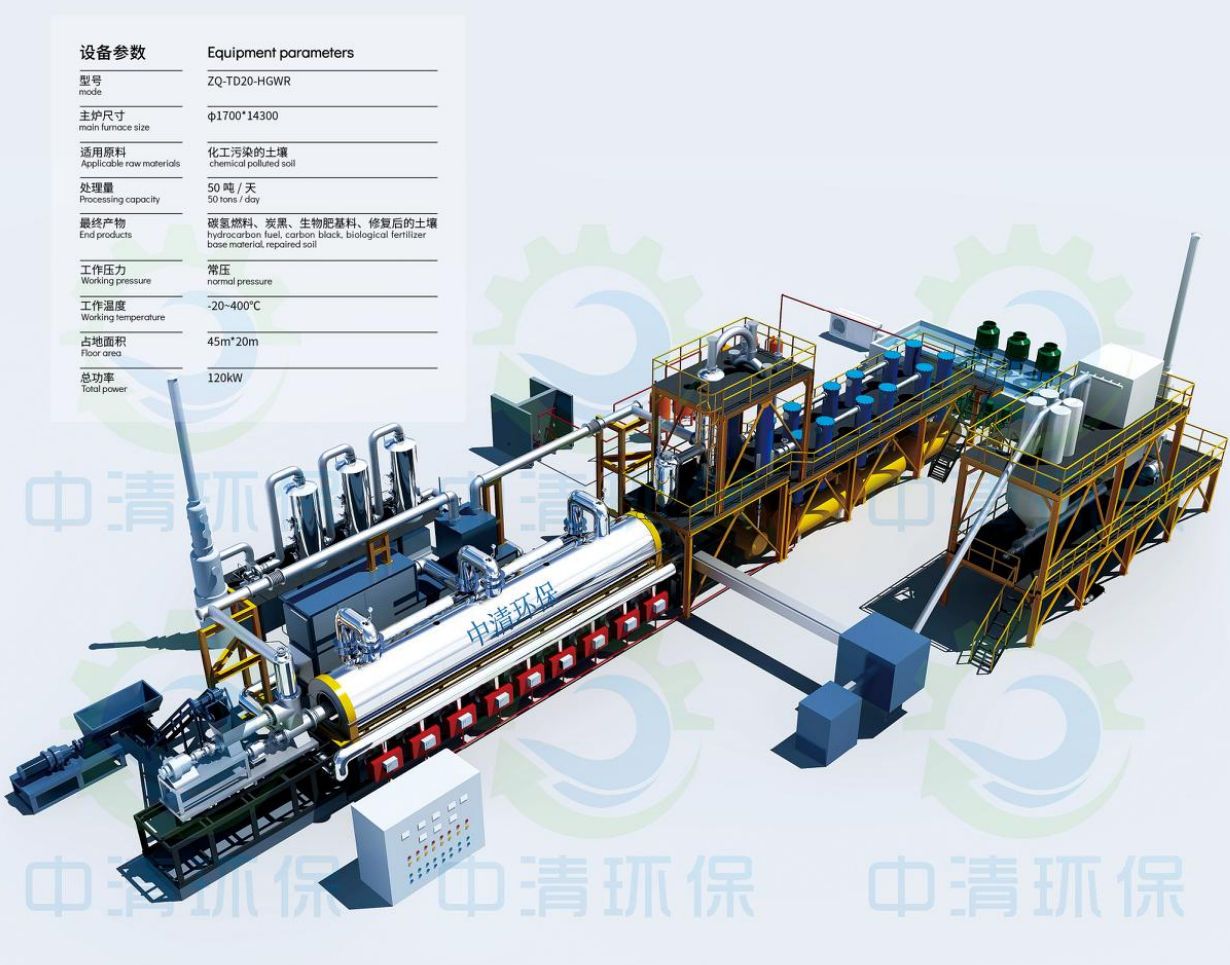

Shangqiu Jinzhongqing Heavy Industry Co., Ltd has developed chemical contaminated soil remediation equipment through continuous efforts. The polluted sites are mainly organic pollution (petroleum polycyclic aromatic hydrocarbons (PAHs), organochlorine pesticides,polychlorinated biphenyls, dioxins, inorganic pollution (heavy metal elements such as pbcdhgas) and composite pollution of both. Thermal desorption technology can effectively remove petroleum hydrocarbons, volatile organic compounds (VOC), semi volatile organic compounds (SVOC) in polluted soil, and can also effectively remove low volatile and difficult to decompose organic compounds such as PCBs, DDT, dioxins, chlorine pesticides and so on. The removal rate of benzene and naphthalene is more than 99.9%, and the removal rate of other PAHs is 97-99.9%. The pollutants in the treated soil meet the standard limits in the screening value of site soil environmental risk assessment (db11/t 811-2011); The tail gas emission meets the standard limit of organized emission in the integrated emission standard of air pollutants(db11/501-2007); The sewage treatment meets the standard of quality of industrial water for urban sewage recycling (gbt19923-2005), which can be directly reused on site, basically realizing zero discharge of wastewater.
| Equipment parameters | |
| Mode | ZQ-TD20-HGWR |
| Main furnace size | ∮1700*14300 |
| Applicable raw materials | chemical polluted soil |
| Processing capacity | 50 tons / day |
| End products | hydrocarbon fuel, carbon black, biological fertilizer base material, repaired soil |
| Working pressure | normal pressure |
| Working temperature | -20~400°C |
| Floor area | 45m*20m |
| Total power | 120KW |
Shangqiu Jinzhongqing Heavy Industry Co., Ltd has developed chemical contaminated soil remediation equipment through continuous efforts. The polluted sites are mainly organic pollution (petroleum polycyclic aromatic hydrocarbons (PAHs), organochlorine pesticides,polychlorinated biphenyls, dioxins, inorganic pollution (heavy metal elements such as pbcdhgas) and composite pollution of both. Thermal desorption technology can effectively remove petroleum hydrocarbons, volatile organic compounds (VOC), semi volatile organic compounds (SVOC) in polluted soil, and can also effectively remove low volatile and difficult to decompose organic compounds such as PCBs, DDT, dioxins, chlorine pesticides and so on. The removal rate of benzene and naphthalene is more than 99.9%, and the removal rate of other PAHs is 97-99.9%. The pollutants in the treated soil meet the standard limits in the screening value of site soil environmental risk assessment (db11/t 811-2011); The tail gas emission meets the standard limit of organized emission in the integrated emission standard of air pollutants(db11/501-2007); The sewage treatment meets the standard of quality of industrial water for urban sewage recycling (gbt19923-2005), which can be directly reused on site, basically realizing zero discharge of wastewater.
| Equipment parameters | |
| Mode | ZQ-TD20-HGWR |
| Main furnace size | ∮1700*14300 |
| Applicable raw materials | chemical polluted soil |
| Processing capacity | 50 tons / day |
| End products | hydrocarbon fuel, carbon black, biological fertilizer base material, repaired soil |
| Working pressure | normal pressure |
| Working temperature | -20~400°C |
| Floor area | 45m*20m |
| Total power | 120KW |

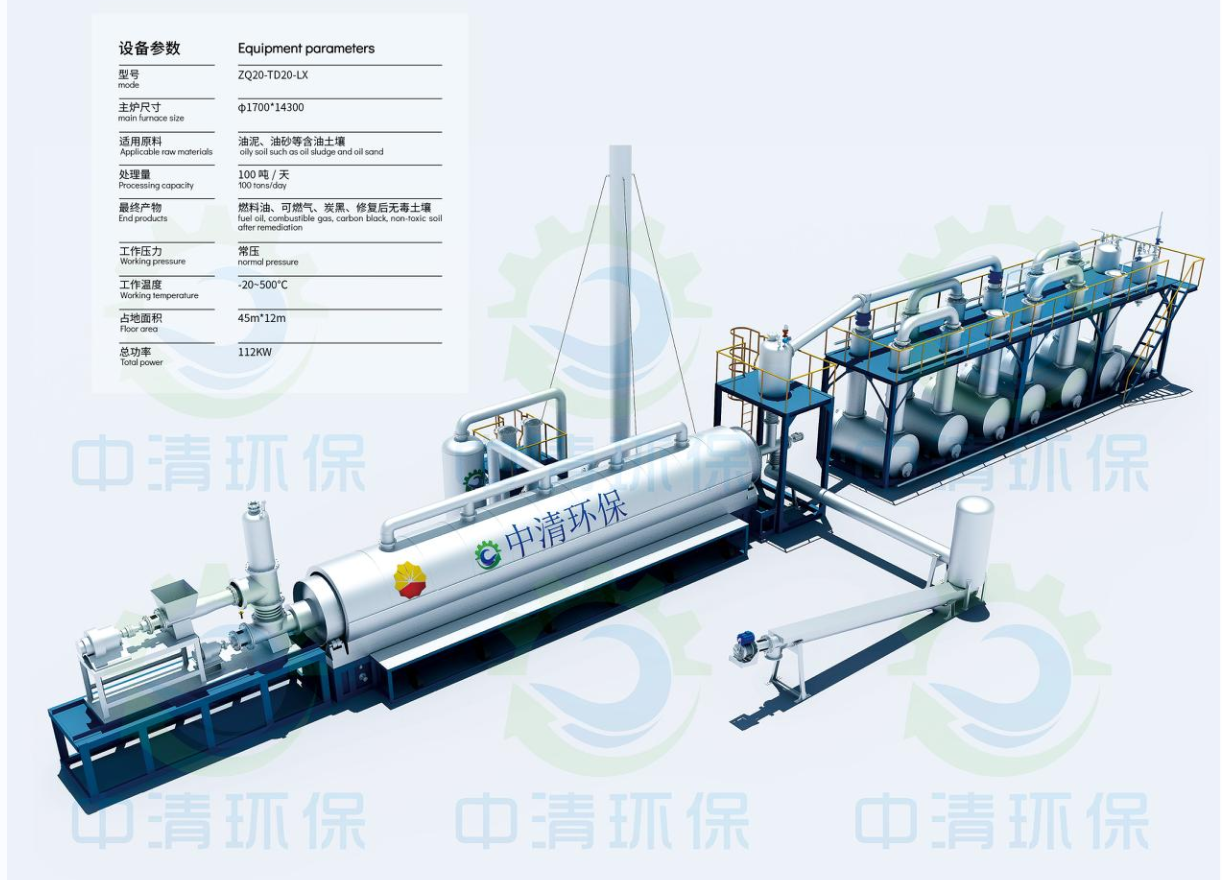

The special continuous soil remediation equipment for the oil feld can form a temperature environment of 200~500’C in different regions under the condition of no oxygen but with heat supply by heating system. By doing so, it can analyze and recycle most of the oil in the oily sludge, and pyrolyze some organic matter to produce combustible non-condensable gas. The gas will be burned in the combustion system with independent air supply to supplement heat as the second heat source, so as to make the pyrolysis reaction continue. The whole reaction process is low temperature, low pressure (micro negative pressure), mild, safe and controllable. The pyrolysis reaction is environmentally friendly and with good economic benefits.Firstly, the hot gas and air do not directly contact with oily sludge, so there is no anaerobic reaction, no dust, dioxin or other pollutants. Secondly,this reaction can fully recover the oil in the oily sludge, and the generated pyrolyzed gas can supplement the heat energy consumption. Thirdly, the treated products are inorganic carbon particles, and heavy metals and other pollutants are chelated in the carbon structure, which can be landfilled or reused in an environmentally friendly manner. Therefore, the whole pyrolysis realizes recycling, which is environmentally friendly and highly economical.
| Equipment parameters | |
| Mode | ZQ20-TD20-LX |
| Main furnace size | ∮1700*14300 |
| Applicable raw materials | oily soil such as oil sludge and oil sand |
| Processing capacity | 100 tons/day |
| End products | fuel oil, combustible gas, carbon black, non-toxic soil after remediation |
| Working pressure | normal pressure |
| Working temperature | -20~500°C |
| Floor area | 45m*12m |
| Total power | 112KW |
The special continuous soil remediation equipment for the oil feld can form a temperature environment of 200~500’C in different regions under the condition of no oxygen but with heat supply by heating system. By doing so, it can analyze and recycle most of the oil in the oily sludge, and pyrolyze some organic matter to produce combustible non-condensable gas. The gas will be burned in the combustion system with independent air supply to supplement heat as the second heat source, so as to make the pyrolysis reaction continue. The whole reaction process is low temperature, low pressure (micro negative pressure), mild, safe and controllable. The pyrolysis reaction is environmentally friendly and with good economic benefits.Firstly, the hot gas and air do not directly contact with oily sludge, so there is no anaerobic reaction, no dust, dioxin or other pollutants. Secondly,this reaction can fully recover the oil in the oily sludge, and the generated pyrolyzed gas can supplement the heat energy consumption. Thirdly, the treated products are inorganic carbon particles, and heavy metals and other pollutants are chelated in the carbon structure, which can be landfilled or reused in an environmentally friendly manner. Therefore, the whole pyrolysis realizes recycling, which is environmentally friendly and highly economical.
| Equipment parameters | |
| Mode | ZQ20-TD20-LX |
| Main furnace size | ∮1700*14300 |
| Applicable raw materials | oily soil such as oil sludge and oil sand |
| Processing capacity | 100 tons/day |
| End products | fuel oil, combustible gas, carbon black, non-toxic soil after remediation |
| Working pressure | normal pressure |
| Working temperature | -20~500°C |
| Floor area | 45m*12m |
| Total power | 112KW |
